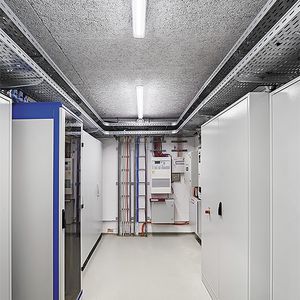

Hanging light fixture AMPHIBIA
surface-mountedLEDlinear

Hanging light fixture - AMPHIBIA  - ZUMTOBEL - surface-mounted / LED / linear
Hanging light fixture - AMPHIBIA  - ZUMTOBEL - surface-mounted / LED / linear
Add to favorites
Compare this product

Characteristics

Type
hanging, surface-mounted
Light source
LED
Shape
linear
Protection class
IP66
Interior/exterior use
outdoor
Application
industrial
Material
polycarbonate, PMMA
Color
white
Style
contemporary
Dimmable
dimmable
Number of lights
multiple
Other characteristics
DALI, sensor
Height

90 mm
(4 in)

Length

Max.: 1,600 mm
(63 in)

Min.: 1,100 mm
(43 in)

Width

90 mm
(4 in)

Power

20 W

Luminous flux

2,950 lm

Color temperature

4,000 K

Color rendering index (CRI)

80 unit

Description

Cover and basic diffuser made of impact-resistant polycarbonate (PC), temperature- and UV-resistant, made as a single injection-moulded piece Drip-edge effect for minimising dirt and collections of dust for maximum hygienic requirements Patented InvisiClick snap-mechanism for clipless mounting and opening of the cover mounting with V2A mounting clips to ceilings, walls or mounting rails (see SCUBA accessories) Luminaire pre-wired using halogen-free leads TW version: with integrated three-wiring: 5 x 2.5 mm² + 2 x 1.5 mm² (loadable up to max. 10A per phase) Dimming level for DC mode preset to 15 % for DALI controllable converters (LDO) Dimming level for DC mode preset to 100 % for non-controllable converters (EVG) Chromaticity tolerance between multiple luminaires of up to 3 MacAdam ellipses Approved for indoor use or in canopied outdoor areas The most mechanically robust luminaire in the portfolio is UV-stabilised, impact-resistant and chemically resistant against alcohol, ethanol and hydrogen peroxide Designed for BESA Box Complies with the requirements of international food industry standards The "dimmable DALI" luminaires contain DALI-controllable converters TRIDONIC smart Switch motion sensor with microwave technology Version with radio frequency for wireless connection and grouping of luminaires Luminaire is available in other light colours, with emergency light, sensors, quick-connect connection and through-wiring via myAmphibia High quality direct/indirect light concept for optimum lighting solutions in parking garages and industrial applications

VIDEO

Catalogs

AMPHIBIA
AMPHIBIA
26 Pages
TECTON
TECTON
64 Pages
