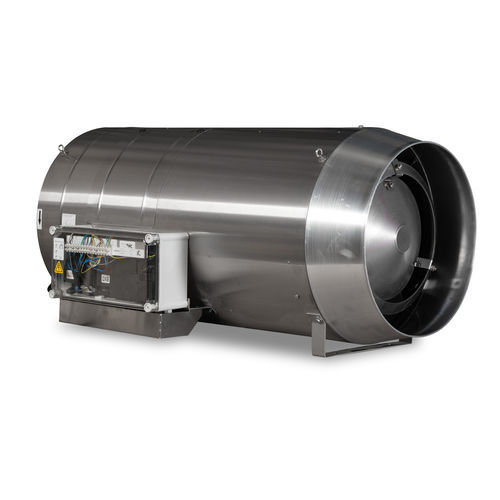

Fuel oil air heater DXB 120

suspended

Open combustion system Products of combustion enter the building 100% efficiency Proven design Robust stainless steel casing oil-fired heater paraffin and HBO 1 automatic restart suspension on chains no flue needed option: air discharge cone for improved air distribution equipment in splash-proof case high-pressure cleaning allowed also available in 60 Hz Nominal power 120kW Nominal load lower value 120kW Efficiency 100% Air volume 0m³/h - 7000m³/h Max. throw horizontal 45m Max. throw vertical 0m Supply voltage 230V Nominal current 4.8A Max. electric power input 1000W Max. sound level (at a distance of 4 metres) 79dB(A) Material heat exchanger Steel Closed version No Burner controller high/low No Burner controller, modulating No Control signal on/off Yes Control signal 0-10 V No Fan type Axial Degree of protection (IP) IPX4B Height 540mm Width 655mm Depth 1320mm Weight 45kg Connection, fuel External thread Nominal diameter fuel Other
