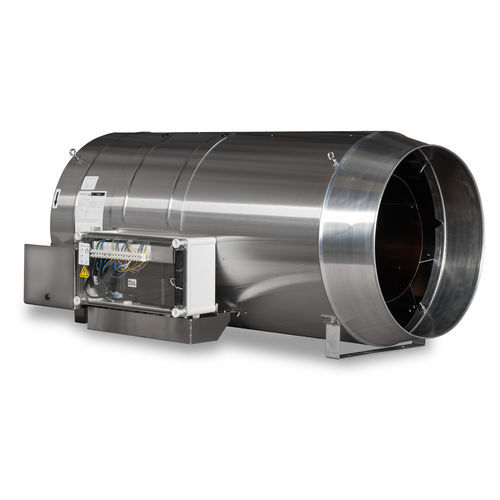

Gas air heater DXA 100

suspended

Open combustion system Products of combustion enter the shed 100% efficiency Proven design Robust stainless steel casing The DXA 100 is the medium-sized unit of the range. All 3 DXA units consist of the same technology. The burner control unit are well protected against water. There is a separate display for reading out status and functions. The climate computer gives a signal to the DXA. There are also ventilation and manual modes. For special functionality there is an interface board available. gas-fired heater natural gas or propane 1 automatic restart suspension on chains no flue needed option: air discharge cone for improved air distribution equipment in splash-proof case high-pressure cleaning allowed Nominal power 100kW Nominal load lower value 100kW Efficiency 100% Air volume 0m³/h - 6000m³/h Max. throw horizontal 40m Max. throw vertical 0m Supply voltage 230V Nominal current 2.8A Max. electric power input 550W Max. sound level (at a distance of 4 metres) 79dB(A) Material heat exchanger Steel Closed version No Burner controller high/low No Burner controller, modulating No Control signal on/off Yes Control signal 0-10 V No Fan type Axial Degree of protection (IP) IPX4B Height 540mm Width 655mm Depth 1230mm Weight 40kg Connection, fuel External thread Nominal diameter fuel 3/4 inch (20) Gas consumption low-calorific natural gas (G25) 11.8m³/h Gas consumption propane (G31) 7.9kg/h
