Sealed combustion system
No CO2 introduced into the poultry house
Up to 25% energy savings
Reliable design
Reduced fire risk

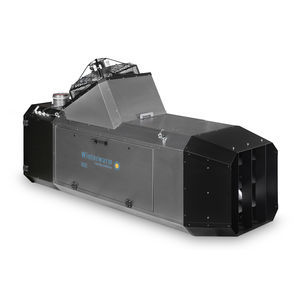

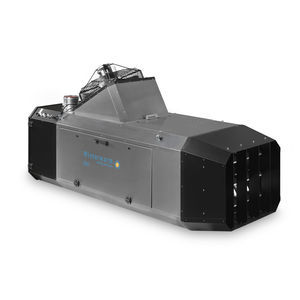

The DXC 80 is the middle capacity heater. With 4 x DXC 80, a poultry house of approximately 3,000 m2 can be efficiently heated. It has a closed combustion chamber which ensures a safe operation.
For a good circulation of the air and low temperature differences in the farm, we recommend also using DXF fans.
stainless steel casing
robust tubular heatexchanger
clear and simple readable display for service
introduction of outside air by flexible SS-tube
on/off control as standard
modulating control possible
0-10 V. analogue input
easy to clean
installation on mobile stand or on chains
natural gas or propane
CE approved
Nominal power
75.9kW
Nominal load lower value
83kW
Efficiency
91.5%
Air volume
0m³/h - 8000m³/h
Max. throw horizontal
45m
Supply voltage
230V
Nominal current
3.9A
Max. electric power input
900W
Max. sound level (at a distance of 4 metres)
70dB(A)
Material heat exchanger
Stainless steel
Closed version
Yes
Burner controller high/low
No
Burner controller, modulating
Yes
Control signal on/off
Yes
Control signal 0-10 V
No
Fan type
Axial
Degree of protection (IP)
IPX4B
Height
1080mm
Width
650mm
Depth
2100mm
Weight
150kg
Outer pipe diameter combustion air
130mm
Connection, fuel
External thread
Nominal diameter fuel
3/4 inch (20)
Gas consumption low-calorific natural gas (G25)
9.9m³/h
Gas consumption propane (G31)
6.6kg/h
