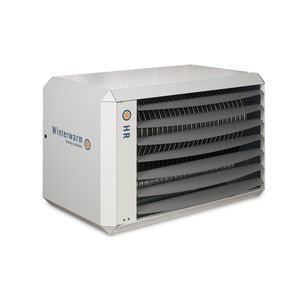

Gas air heater HR 100

ceiling-mountedwall-mounted

High efficiency Modulating burner and fan Reliable design Relatively low investment 10 years warranty on heat exchanger The HR 100 is a condensing air heater with an axial fan. The unit has a capacity of 100 kW and an efficiency of appr. 106%. Both the pre-mix burner and system fan can modulate back to 30%. In combination with the MultiTherm thermostat, these features ensure a constant and even temperature in the building. The HR 100 is suitable for natural gas or propane gas. The HR 100 can be used in production halls as well as warehouses etc. The HR units are a sustainable heating solution with a short return on investment. They are ideally suited for installation in medium and large size commercial buildings as well in warehouses and industrial buildings. condensing heater modulating burner and fan regulation for more comfort delta T-regulation optimizes gas consumption compact and light summer ventilation natural gas version or propane gas tilted version (V): slanted air discharge for a better air distribution z very suitable for factory buildings or warehouses control of 1-4 heaters with 1 thermostat simple maintenance delivery incl. siphon Nominal power 96.8kW Nominal load lower value 100kW Efficiency 105% Air volume 0m³/h - 10000m³/h Max. throw horizontal 30m Max. throw vertical 0m Supply voltage 230V Nominal current 4.4A Max. electric power input 1000W Max. sound level (at a distance of 4 metres) 66dB(A) Material heat exchanger Stainless steel Closed version Yes Burner controller high/low No Burner controller, modulating Yes Control signal on/off Yes Control signal 0-10 V No Fan type Axial Degree of protection (IP) IP00B
