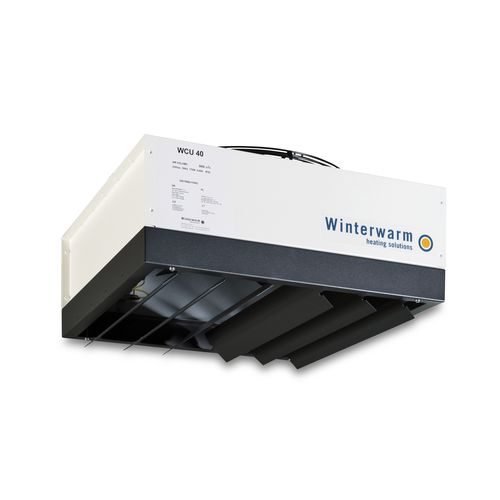

Fan heater WCU 40

Energy saving Reduced heat loss Even heat distribution in the space Increased comfort Adjustable louvres to direct the air The WCU 40 is a compact destratification unit with a rectangular casing and fan for buildings maximum height of of 8 meter. All WCU units have an adjustable grill in order to guide the air flow. In warehouses, it is recommended to place these units between the racks in order to have a free flow of air. Keep the heat loss as low as possible For buidings over 5 meter high we recommend the use of destrification units. The Dutch ISSO 57 publication (independent research bureau) also recommends 1 WCU fan for each 300 m2 of surface in the building. suitable for 5 to 8 m. height adjustable louvres “Plug and play" built-in 230 V. thermostat air volume controllable by a 5-step switch simple suspension from chains Model Ceiling Air volume, unloaded 3200m³/h Impeller diameter 350mm Throw vertical 5 - 8 Rotational speed 13801/min Power consumption 0.16kW Connection voltage 230V - 230V Frequency 50 Hz With thermal protection No Electrical connection Terminals Degree of protection (IP) IP30 Material Steel-treated Colour White Suitable for wall mounting No Pendant length 0mm - 0mm Height 400mm - 400mm Width 580mm Depth 560mm
