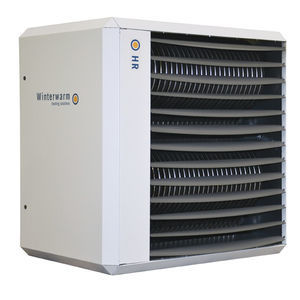

Gas air heater HR 50
wall-mountedceiling-mounted

Gas air heater - HR 50 - Winterwarm Heating Solutions BV - wall-mounted / ceiling-mounted
Gas air heater - HR 50 - Winterwarm Heating Solutions BV - wall-mounted / ceiling-mounted
Add to favorites
Compare this product

Characteristics

Energy source
gas
Installation
wall-mounted, ceiling-mounted

Description

High efficiency Modulating burner and fan Reliable design Relatively low investment 10 years warranty on heat exchanger The HR 50 is a condensing air heater with an axial fan. The unit has a capacity of 50 kW and an efficiency of approxiamately 106%. The pre-mix burner and the system fan modulate both independently and stepless back to 30%. These both features ensure a constant and even temperature in the building. The HR 50 is suitable for natural gas or propane gas. It is also possible to mount the unit up to an angle of 45 degrees. Together with the louvres, it is then possible to blow warm air vertically. The compact and attractive design of the heater makes it possible to install it in various commercial buildings. condensing heater modulating burner- and fan regulation for more comfort delta T-control optimizes gas consumption compact and light summer ventilation natural gas version of propane gas tilted model (V): slanting air distribution suitable for middle large industrial buildings, garages, etc. control of 1-8 heaters with 1 thermostat simple maintenance delivery incl. siphon Nominal power 48.3kW Nominal load lower value 50kW Efficiency 106% Air volume 0m³/h - 5000m³/h Max. throw horizontal 28m Max. throw vertical 0m Supply voltage 230V Nominal current 2.6A Max. electric power input 450W Max. sound level (at a distance of 4 metres) 64dB(A) Heat exchanger material Stainless steel Closed version Yes Burner controller high/low No Burner controller, modulating Yes Control signal on/off Yes Control signal 0-10 V No Fan type Axial Degree of protection (IP) IP00B Height 670mm Width 1065mm Depth 775mm Weight 105kg
