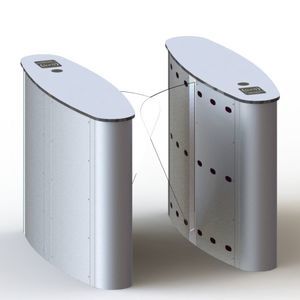

Glass speed gate WR-226
stainless steel

Glass speed gate - WR-226 - Winser Technical - stainless steel
Glass speed gate - WR-226 - Winser Technical - stainless steel
Add to favorites
Compare this product

Characteristics

Other characteristics
glass, stainless steel

Description

Body Main frame galvanized steel, side and front panels 304 quality stainless steel, top panel 304 quality stainless steel Arms Angular movement, 10 mm plexiglass (Opt.: Impact resistant 10 mm tempered glass) Weight Single body ~ 140 kg Double body ~ 170 kg Indicators Guidance indicators are available as standard Operating Temperature -20 +60°C Accessories Side panels are specially colored plexiglass, black glass top, membrane coating, granite Energy 176-264 VAC 50 Hz Standby 10 W - Transition 80 W Dimensions . WR-226 Rapid Transit Turnstiles are specially designed for plaza entrances with heavy transitions. It has fast on-off and silent operation. The electronic control unit of the WR-226 Quick Access Turnstile monitors the movements of people entering and exiting the turnstiles along the turnstile with the help of optical sensors. In this way, the electronic control unit decides the movements of the person passing through the turnstile according to the location. WR-226 Quick Access Turnstile can operate in normally open or normally closed positions, depending on the passage from both directions or one way. The wings of the WR-226 Quick Access Turnstile move at high speeds with an electromechanical motor. Intrusions are detected by specially positioned optics. WR-226 Quick Access Turnstile's side panels are made of Plexiglas, the top plate is granite and other visible metal parts are made of AISI 304 stainless steel, and all internal chassis parts are made of galvanized steel. In addition, it can optionally be offered with customer-specific designs with different top table and side panel options.

Catalogs

WR-226
WR-226
1 Pages
