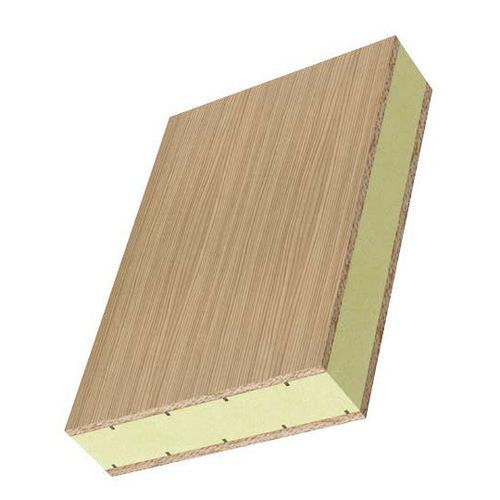

Facade insulating sandwich panel COSMO CLASSIC - SPE

for doorfor window2 plywood faces

Plywood on both sides, XPS core Composite panels consisting of plywood cover sheets with a thickness of 4,0mm and a core of extruded polystyrene foam (XPS). SPECIAL CHARACTERISTICS - surface raw - surfaces with sliced or peeled veneer - humidity resistant - free of CFC and HCFC APPLICATION EXAMPLES - window fillings - door fillings - balustrade panels - façade panels Technical information Surface panels Plywood (3 layers), otpional Gabon B/BB, peeled veneer Gabon A/BB, sliced veneer Mahogani A/BB, sliced veneer Pine A/BB, sliced veneer Spruce A/BB, sliced veneer Oak A/BB, sliced veneer Lärche A7BB Messerfurnier Core material Polystyrene foam, extruded (XPS) Thermal conductivity 030 Thickness of surface panels (mm) 4,0 Compressive strength (N/mm²) 0,30 Panel thickness (mm)/U-value* 24/1,29 28/1,09 33/0,92 38/0,79 Standard dimension (mm) 2500x1700
