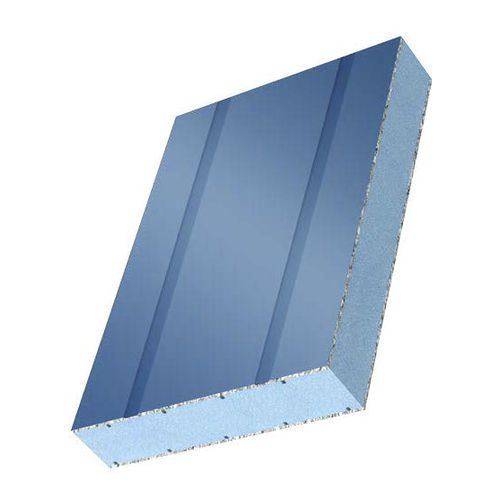

Door insulating sandwich panel COSMO DESIGN - ALU for facadefor windowaluminum facing
Add to favorites
Compare this product
Characteristics
- Applications
- for door, for facade, for window
- Facing material
- aluminum facing
- Core material
- extruded polystyrene core
- Technical characteristics
- high-resistance
- Width
1,000 mm
(39 in)- Length
2,000 mm
(79 in)- Thickness
24 mm
(0.94 in)
Description
ALU-groove on both sides, XPS core
Composite panels consisting of a shaped pure aluminium AlMG1cover sheet with a thickness of 2,0mm and a core of extruded polystyrene foam (XPS).
SPECIAL CHARACTERISTICS
- groove profiles according to design overview
- powder-coated according to RAL
- humidity resistant
- free of CFC and HCFC
APPLICATION EXAMPLES
- window fillings
- door fillings
- balustrade panels
- industrial door fillings
- façade panels
Technical information
Surface panels
Pure aluminium Al MG 1
Core material
Polystyrene foam, extruded (XPS)
Thermal conductivity
035
Thickness of surface panels (mm)
2,0
Compressive strength (N/mm²)
0,30
Panel thickness (mm)/
U-value*
24/1,30
Standard dimension (mm)
2000x1000
