Model UDQ1010SQI1V
Width 1000 mm
Height 40 mm
Depth 15 mm
Length 1000 mm
Weight 26,8 kg

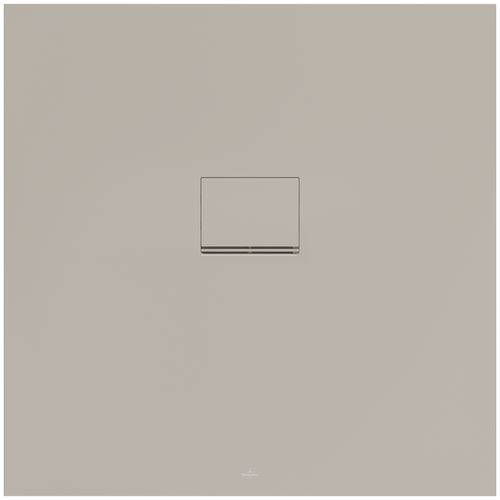

Product description Shower tray
description standard models for all installation types
Technical information:: Drainage capacity: 48 l/min, The installation height of the shower tray can be reduced by 30 mm if the Viega outlet fitting art. no. 634 100 is used. Please note: this outlet fitting does not conform to EN 274., All shower trays are classified as anti-slip class C (in accordance with DIN51097), These shower trays are not cut and can be used for all types of installation (recessed in the floor, on the floor, on a base)., Quaryl shower trays can be cut to size on site according to the installation instructions; detailed video at pro.villeroy-boch.com/squaroinfinity or QR code on this page.
Outlet cover in matching matt colour with chrome-plated strip.
Not included in scope of delivery:: All shower trays are supplied without support/base.
Diameter: 90 mm
material Quaryl®
