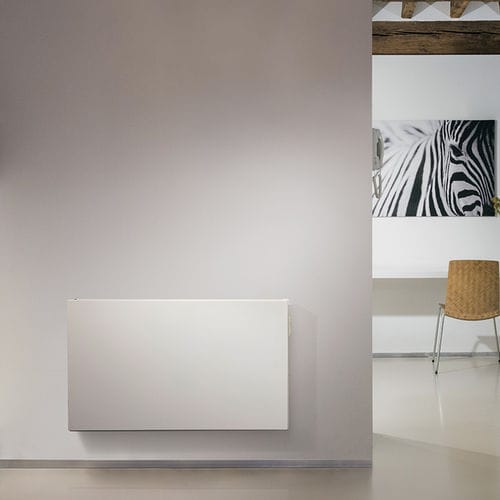

Electric radiator E-PANEL EP-H-FL
1001 w...1500 w500 w750 w

Electric radiator - E-PANEL EP-H-FL - VASCO - 1001 w...1500 w / 500 w / 750 w
Electric radiator - E-PANEL EP-H-FL - VASCO - 1001 w...1500 w / 500 w / 750 w
Electric radiator - E-PANEL EP-H-FL - VASCO - 1001 w...1500 w / 500 w / 750 w - image - 2
Add to favorites
Compare this product

Characteristics

Type
electric
Power
1001 w...1500 w, 500 w, 750 w, 1501 w...2000 w
Style
contemporary
Finish
steel
Color
red, customizable color, white, silver-colored, violet, black, gray, orange, sand, blue, brown, green, anthracite, beige, yellow, golden, pink
Installation
wall-mounted
Orientation
horizontal
Configuration
rectangular
Room/use
for living rooms, for office
Sector
residential, commercial
Other characteristics
radiant panel, WiFi
Width

Max.: 1,201 mm
(47.3 in)

Min.: 500 mm
(19.7 in)

Height

600 mm
(23.6 in)

Weight

Max.: 46 kg
(101.41 lb)

Min.: 20 kg
(44.09 lb)

Description

E-Panel radiators guarantee easily adjustable heating, a stable temperature, stylish design and extremely high efficiency despite their small size. An obvious choice for those who want to get the most out of electric heating with minimum energy consumption. A wide range of E-Panels is available, with capacities suited to each home. There are 7 horizontal models, ranging from 500 W to 2000 W. Their height is always 600 mm, their length varies from 500 mm to 1200 mm. There is also a vertical model from 750-1750 W. The radiators are available in white (RAL 9016) or colour, and you can choose between a ribbed horizontal version (EP-H-RIB) and a flat horizontal version (EP-H-FL). A flat vertical version (EP-V-FL) is also available. • Operating voltage: 230V AC, 50 Hz • Weekly and daily programming • Control of room temperature from 7°C to 30°C • Auto, Comfort, Eco or frost protection mode • Set programmes P1, P2 and P3 can be changed • IPX4 Class II • Cable length: 0.8 m (preferably use a direct fixed wall outlet) Energy-consumption indication • Indicator of open window detection • Control mounted onto the radiator at the right-hand side (included in the price). • Connecting the receiver: brown = live, blue = neutral and black = command wire (to be used only in France; should be shielded in case of non-use) • Double insulated devices do not have earthing • CE certified • Control mounted: right side (-0000) or left side (-8A00) of the radiator (included in the price).
