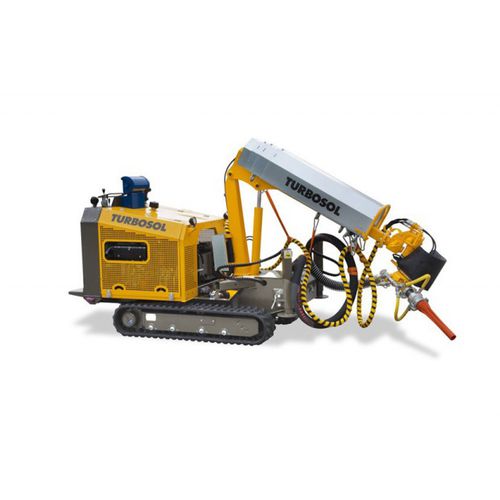

Concrete spraying machine TSR 7

Crawler unit for shotcrete applications TSR 7 is a crawler equipment for spraying concrete in underground works. Equipped with two hydraulic self-braking rubber crawlers, TSR 7 is the best solution to move in rugged and irregular work sites with a total movement autonomy. TSR 7 is easy coupling with concrete pumps for shotcrete works. Caracteristics TSR 7 can work either with a 15 kW diesel engine or with a 7,5 kW electric motor, this dual operation mode makes it easy even in areas with scarce power supply. Thanks to the sturdy telescopic boom with 4 sections, long reach and compact design, TSR7 can be used either for dry or wet shotcrete. Two wide side doors make every component easy accessible for easy maintenance and control operations. The perfect addition to TSR 7 are Turbosol Beton Master or TB 30 stationary concrete pumps which can be supplied with integrated admixture dosing pump. Optionals - Side fix coupling for concrete/air/additive hose - Concrete hose Ø 50 or Ø 65 - Admixture hose - Air hose - Rear stabilizers
