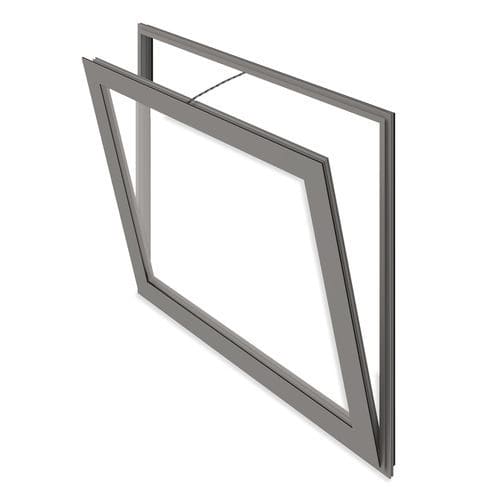

Extruded aluminum smoke vent PERVEA

glasssmoke and heat extractorfor facade

PERVEA is a thermally broken natural ventilation window suitable for natural day-to-day ventilation and smoke control for installation on vertical facades. It has a slim structure, a compact construction, and excellent aesthetics with the motor fully concealed from view. Possible glazing from 13 to 61 mm. Various electric opening systems are available. TYPICAL APPLICATIONS Particularly suitable for applications on facades. Installations: shopping centres, atria, offices, among others. Special profiles can be adapted for wall curtain systems or others as opening masonry. MATERIALS The window structure consists of tempered aluminium. Both the outer frame and flap frame are thermally broken. The frame is sealed with EPDM rubbers. DIMENSIONS Depends on type of profiles. Different profiles are available. INSTALLATION ANGLE The mounting angle is 90º OPENING ANGLE Depends on dimensions, weight and type of control system AIR, WIND, WATER TIGHTNESS Air permeability: class 4 (600 Pa). Resistance to wind load: C4 (1600 Pa). Water tightness: E (750 Pa). THERMAL INSULATION U-value down to 1.6 W/m²K depending on the frame/vent combination and the glass thickness Versions with high insulation, HI and HI+, are available ACOUSTIC PERFORMANCE Rw (C; Ctr) = 42 (-2; -4) dB GLAZING POSSIBILITIES Possible glazing from 13 to 61 mm Other thicknesses are available in combination with other profiles CONTROLS HIDDEN MOTORS in the aluminium profiles: M24V: chain electric drive (for smoke and day-to-day ventilation). M230V: chain electric drive (for day-to-day ventilation).
