Aluminum ventilation grill VENTRA STERLING-F

polycarbonateextruded aluminumrectangular

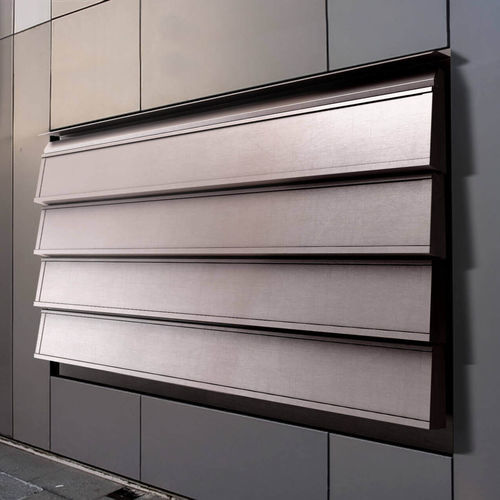

VENTRA STERLING F is a multi louvred ventilator that provides an economic, non powered method of ventilation, allowing the removal of large quantities of warm air and / or smoke from a building within a short period of time. The VENTRA STERLING F is a further development on the already proven VENTRA F but is a response to the increased requirements for air tightness and thermal insulation in certain building designs and applications worldwide. The Ventra Sterling F is suitable for facade fresh air supply, air and smoke extraction and also facade natural lighting. The vents are manufactured according to ISO 9001 quality control standards. The vents are formed from high quality corrosion resistant aluminium to ensure low maintenance requirements and water tightness. Various methods of operation using pneumatic or electric actuators are available. The ventilator design produces a versatile economic unit suitable for a wide range of applications. Available on large dimensions, up to 2400 x 3826 mm (width x length) for HB, 2400 x 3804 mm (width x length) for LB. TYPICAL APPLICATIONS Versatile scope of applications on and facades, with an installation angle range of 90º. Installations: Industrial buildings, warehouses, logistics centres, shopping centres, atria, schools, stairwells, among others. MATERIALS Tempered aluminium, sea water and corrosion resistant (EN AW 5754). Corrosion resistant bearings. Built-in weather resistant hydrophobic tape. Note: aluminum is supplied untreated as standard. Possibility of being supplied with electrostatic painting (in any RAL color). OPENING ANGLE Individual adjustable from 0° up to 90º
