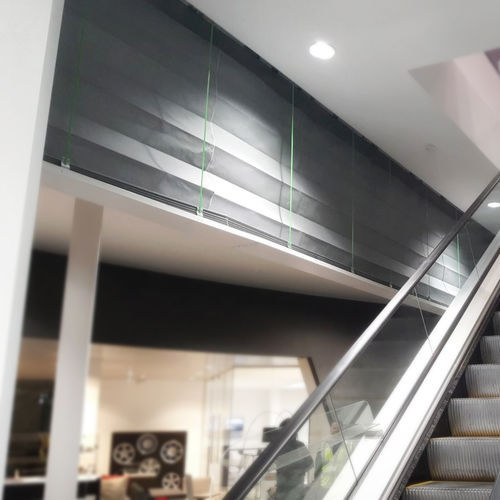

Smoke curtain TRIAFIRE Z

TRIAFIRE Z is an Automatic Fire Curtain that in the case of fire, limits and controls the fire, with classification E 120 and EW 20. This system can be adapted to irregular geometric perimeters open or closed in order to avoid vertical beams. The curtain is composed of fibreglass fabric with polyurethane coating on both sides seamed with reinforced steel wire and fixed to a 2 mm plate inside the headbox and to the bottom bar. Galvanized steel elements such as headbox, side guides and bottom bar. All the system is driven by at least one 230 V tubular motor with special gravity fail-safe system. The control panel for automatic curtains (CBM), has a nominal input voltage of 115 V / 220 V and an output voltage of 230 V / 24 V. Uninterruptible Power Supply (UPS System) with autonomy for up to 6 hours exists in all control panels. Tested in accordance with EN 1634-1 and classified in accordance with EN 13501-2. OPERATION The system can be activated by a SHEV, fire alarm contact, internal fire and smoke detection devices, or manual emergency buttons. In the event of a fire, the Control Panel (CBM), receives the signal alarm, and the automatic curtain deploys automatically, with the controlled and safe constant speed of descent even following total power loss on all curtains. If there is a false alarm the curtains return to the stand-by position automatically after resetting the alarm from the main Fire Management Systems. In case of main power loss, the curtain will remain fully retracted thanks to the battery backup system.
