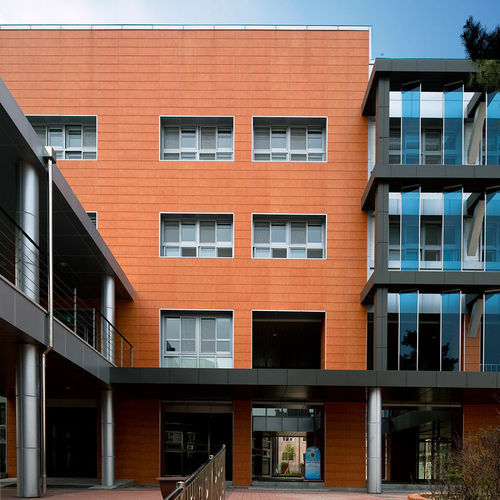

Ventilated facade cladding FK-L 59/16

panelceramicvertical

The FK System is an innovative solution for the installation of ceramic facades that combines efficiency and versatility. This system of open vertical and overlapping horizontal joints is designed to guarantee maximum stability and durability of your architectural project. The FK System consists of two main elements: brackets with fixed points that are attached to the slabs and brackets with movable points that are fixed to the façade wall. The choice of mechanical anchors, plastic plugs and screws, or chemical plugs for fixing depends on the specific characteristics of the wall on which the system is to be installed, which guarantees perfect adaptation to each project. The vertical “T” shaped profile is fixed to the brackets using self-drilling screws, provided that they comply with the applicable regulations. This profile has the important function of optimally levelling and plumbing the ceramic façade, ensuring a precise and high quality installation. The horizontal rail, which can be delivered either punched or unpunched, is attached to the vertical profiles in a T-shape. This rail plays a key role in providing a robust support for hanging the FK ceramic tiles. It is composed of springs and modulated plates that are inserted into the rail, which allows a precise adjustment of the ceramic tiles and eliminates possible vibrations caused by external agents. The FK System not only guarantees a safe and durable installation of ceramic facades, but also offers design flexibility and attractive aesthetics. In addition, it complies with the regulations and quality standards required for high-end architectural projects.
