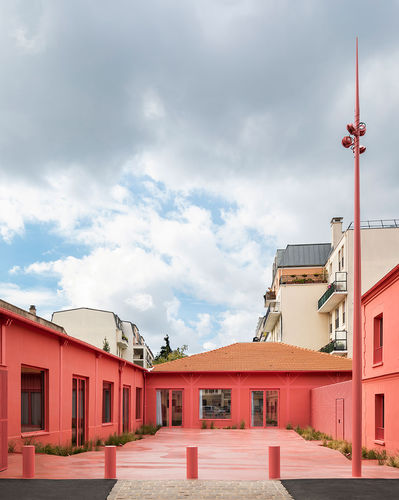

Urban lamp post AIGUILLE

contemporaryaluminumgalvanised steel

Aiguille (“Needle”) is a tapered aluminum pole ended by a spike, going up from the pole with no break in the overall line. It benefits from the Technalinox® technolgy and is thus entirely weld-free, to provide stronger structural resistance. Technalinox® tapered aluminum pole topped by a spike with no break in the overall line. Mast profile: Technalinox Profile dimension: Base: from Ø114 to Ø200 mm (Ø 4 1/2″ to 4 3/4″). Top: from Ø60 to Ø90 mm (Ø 2 3/8″ to 3 9/16″) One or two access door(s) made from a specific aluminum profile. Flush, interchangeable. Opening size depends on the section, located at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw. Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive.
