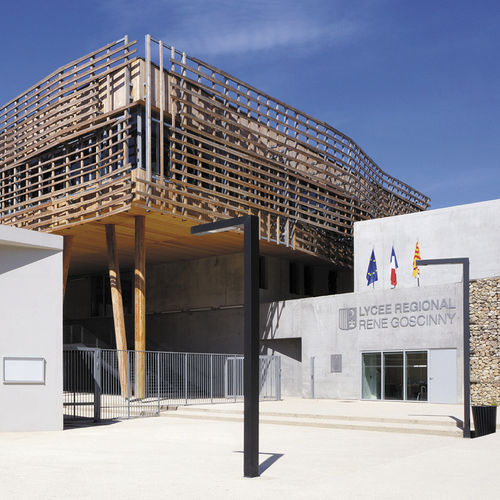

Urban lamp post SHIRAZ

contemporaryaluminumLED

The shape of Shiraz model, definitely contemporary, has made its success. Shiraz benefits from the exclusive and patented City Module® concept and can be adjusted to different heights. It also exists as Shiraz Nano, bollard and wall-mounted, to offer an harmonious continuity within the public space. Mast exclusive rectangular aluminum profile with functional internal structure. Mast profile: Shiraz Profile dimension: 200 x 120 mm (7 7/8″ x 4 3/4″) Access door made from a specific aluminum profile. Flush, interchangeable. Opening 500×90 mm (19 11/16″ x 3 9/16″) at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw. Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Arm(s) Bracket made in the same profile as the pole offering perfect harmony. Open work underneath the arm to fit a specific luminaire. Simple or double mast head. Number of arms: 1-4 Possible to add a pedestrian lighting (Technifonction) Standard outreach: 1 m (or 3′ 3 3/8″) Tilt: 0°-20° Finishing Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
