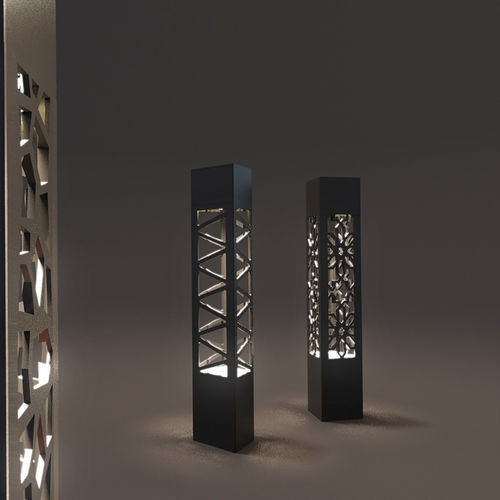

Urban bollard light TREILLE

contemporaryaluminumLED

Treille takes its name (trellis) from its fretted aluminum structure. The internal illumination enhances the model with a distinctive look, giving off a cascading light effect. Treille has a typical trapeze-shape profile, and is available as a light column or bollard, perfect for ambient or decorative lighting. Height from 1 to 1.4 m (from 3′ 3 3/8″ to 4′ 7 1/8″) Mast Exclusive trapezoidal aluminum profile with internal structure. Fretted on 4 sides. Mast profile: Trapeze PM Profile dimension: 210 x 180 x 140 mm (8 1/4″ x 7 1/16″ x 5 1/2″) Access door available upon request. Extra-flat baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive Finishing Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available. Lighting element(s) Source: LED LED luminaire with integrated LED driver and heat sink. 16 LEDs lighting. Module type: VSL Luminaire dimension: 120x120x60 mm (4 3/4″ x 4 3/4″ x 2 3/8″) Power: 16 W Outgoing flow: 2170 – 2315 lm Lighting efficiency: 141 lm/W Color temperature: 3000 K, 4000 K CRI >70 Optic: Asymmetrical Protection: IP 66 / IK 05 Operating temperature: -20° C / +50°C (-4°F / 122°F) Class: 1 (2 possible) Driver Programmable, dimmable (DALI) or not dimmable Power supply: 220 V DEL intensity: 350, 700 mA
