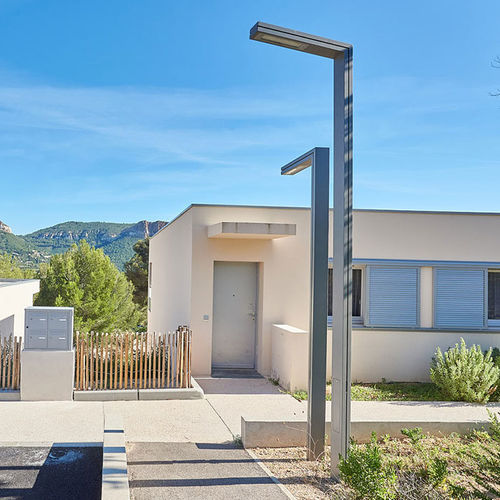

Urban lamp post SHIRAZ K NANO

contemporaryaluminumLED

Technilum’s best-seller, Shiraz K is a contemporary but timeless lamp post, efficient and modular. Accessorizable, it fits perfectly any kind of urban development. Equipped with LEDs, it contributes to reduce environmental footprint thanks to its extended life-span, reduced energy consumption and easy maintenance. Height from 3,5 to 5 m (from 11′ 5 25⁄32″ to 16′ 4 27/32″) Mast exclusive rectangular aluminum profile with functional internal structure. 2 external functional grooves to facilitate accessorization (signage, bin, camera…). Mast profile: Shiraz K Nano Profile dimension: 158 x 95 mm (6 1/4″ x 3 3/4″) Access door made from a specific aluminum profile. Flush, interchangeable. Opening 500×90 mm (19 11/16″ x 3 9/16″) at 600 mm (23 5/8″) from the base (other height on demand). Locked with tamper-proof screw. Baseplate made of die-cast aluminum. Insulating rings on the 4 anchoring oblongs to avoid any contact with galvanized steel bolts. Construction entirely weld-free to eliminate weakness point: the connection pole/base plate is realized thanks to a two-part epoxy adhesive. Arm(s) Bracket made in the same profile as the pole offering perfect harmony. Open work underneath the arm to fit a specific luminaire. Simple or double mast head. Number of arms: 1 Possible to add a pedestrian lighting (Technifonction) Standard outreach: 1 m (or 3′ 3 3/8″) Tilt: 0°-20° Finishing Polyester powder coating: more than 200 colors available, plus special finish. Natural anodization available.
