CONCEPT

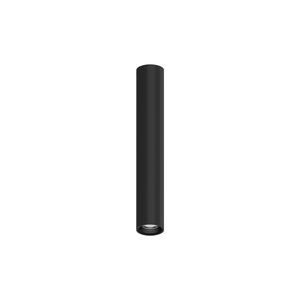

LED Ceiling-, suspension- or track mounted fixture.
MATERIAL
Painted aluminium body.
Galvanized steel Internal structure and passive heat sink in die-cast aluminum with protective cataphoresis treatment.
SOURCE
High efficiency Ra90 LED Chip on Board.
Ra80 on request.
OPTIC
Decorative cut-off ring in thermoplastic material.
Two different optics: low luminance deep UGR for high visual comfort and VWFL for wide coverage with excellent uniformity of luminance.
UGR Optic: composed of a deep thermoplastic reflector with reflective metallisation and a protective anti-scratch coating, a holographic acrylic diffuser screen and a highly reflective white thermoplastic internal recuperator.
UGR<19 and L65<1000 cd/m² (EN 12464-1).
VWFL Optic: with high luminous efficiency composed of a deep thermoplastic reflector with reflective metallisation and a protective anti-scratch coating, a holographic acrylic diffuser screen and a highly reflective white thermoplastic internal recuperator.
INSTALLATION
To be completed with ceiling, suspension or track mounting system.
POWER SUPPLY
Integrated driver available in versions: electronic and DALI dimmable.
NOTES
Casambi control system available using a dedicated accessory (only for DALI version products).
