CONCEPT

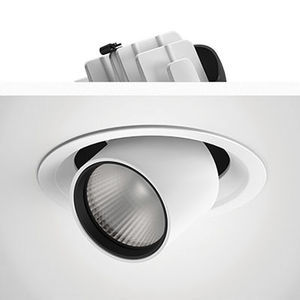

Adjustable recessed LED projector in a trim or trimless version.
MATERIALS
Die-cast black or white painted anodised aluminium body and dissipator. The optical unit can be adjusted up to 40° on the vertical plane with a mechanical beam locking system and a graduated scale, and 355° on the horizontal plane. Available in a trim version with an integrated black or white ring or a trimless version with a load-bearing element for installation and finishing in plasterboard.
SOURCE
High efficiency Ra90 LED Chip on Board.
OPTIC
NSP, SP, FL, MWFL - precision optics with a black silicone cut off ring. Version with a convex faceted highly reflective anodised aluminium reflector and a holographic diffusion filter or a version with a transparent PMMA lens. UGR<19 (EN 12464-1).
INSTALLATION
Quick tool-free mounting system for false ceiling installation from 0.5 to 30mm.
POWER SUPPLY
Integrated electronic or DALI driver. 220-240Vac 50/60Hz
BEAM ANGLE
FL
MWFL
NSP
SP
OPTIC
LENS
REFLECTOR
