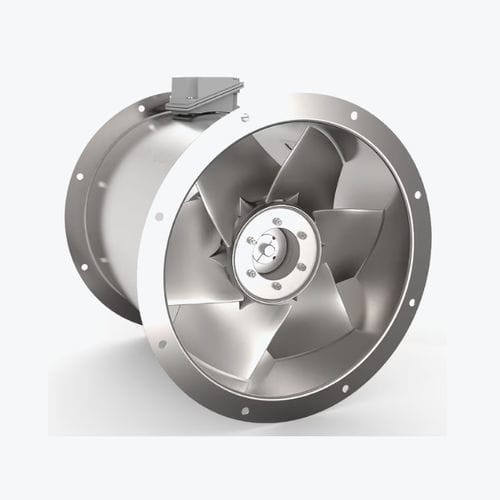

Extractor fan AXC SERIES

axialductcommercial

Axial fan Series AXC, suitable for operating temperatures of up to 55°C. Air direction Form A (from motor to impeller), direct driven. Aerofoil impeller with adjustable pitch angle for maximum efficiency. Aluminium hub and blades. Impeller balanced statically and dynamically in accordance with DIN ISO 1940-1, quality grade G6,3. Long casing, hot dip galvanized steel, to DIN EN ISO 1461. Spun flanges according Eurovent 1/2. VDE certified terminal box in IP65 mounted at the outside of the fan casing for easy wiring. Three-phase motors IE2 efficiency or IE3 efficiency , IP55, insulation class F, in accordance with EN 60034-5/IEC 85. The Systemair AXC range of long cased medium pressure axial fans is available in sizes from 315 up to 2.000 mm nominal diameter. The adjustable pitch angle setting offers a wide performance and maximum flexibility to match precisely individual airflow requirements. The AXC axial fans have been performance tested in accordance with DIN ISO 5801, DIN 24163 and AMCA 210-16 on the Systemair fan test rig. The motors are equipped with PTC thermistors for optimum motor protection. The motor is speed controllable by frequency converter. Dimensions and weights Weight 0kg Medium pressure axial fan with long casing, for direct installation in pipe systems. Casing made of hot dip galvanized steel acc. to DIN EN ISO 1461. Both-sided, spun flanges, pre-drilled, hole pattern acc. to Eurovent 1/2. With inspection hole to check the direction of rotation. Suitable for medium temperatures of up to 55°C in continuous operation. Aerofoil axial impeller made of die cast aluminium with 10 blades, adjustable pitch angle for maximum efficiency.
