Features

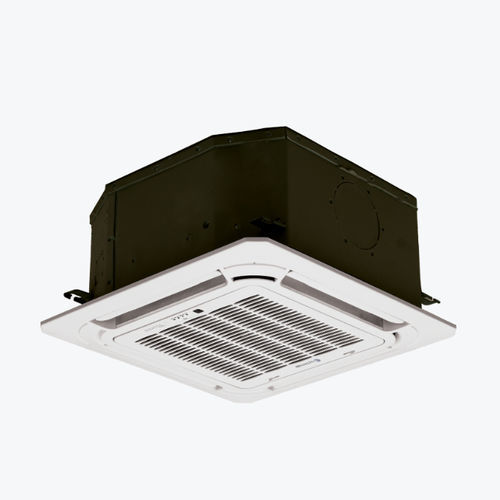

SYSPLIT CASSETTE EVO air conditioners are ideal solution for creating a comfortable climate in the office and shopping centers – in all rooms designed with false ceilings.
• Advanced DC inverter control for the compressor, outdoor fan motor and indoor fan motor.
• The 360° round flow panel assures an optimal air distribution and comfort in the room.
• Special aerodynamic shape of the fan and the geometry of the blades ensure low noise from the air conditioner.
• Washable air filter included in the panel greatly simplifies the maintenance.
• The panel is equipped with an interactive LCD.
• Built-in drain pump with lift height up to 750 mm.
• Fresh air intake can fulfill air quality requirements and enhance occupants comfort.
• Auto-restart after electric power failure.
• The on/off and alarm contacts, as well as the network port for centralized and BMS gateway, allow a remote control of the split system.
• Precise Electronic Expansion Valve fitted in the outdoor unit secures an optimal operation in any ambient conditions.
• Low GWP R32 refrigerant.
• Infrared remote controller SYS RM 57 included; Wired remote SYS WC 29 or SYS WC 120 available as accessory.
Performances
Cooling capacity
2.64kW
Heating capacity
2.93kW
Power consumption heating
0.04kW
General data
Input current
0.18A
Frequency
50Hz
Phase(s)
1~
Voltage (nominal)
230V
Sound data
Sound power level
53dB(A)
Dimensions and weights
Weight
14.5kg
