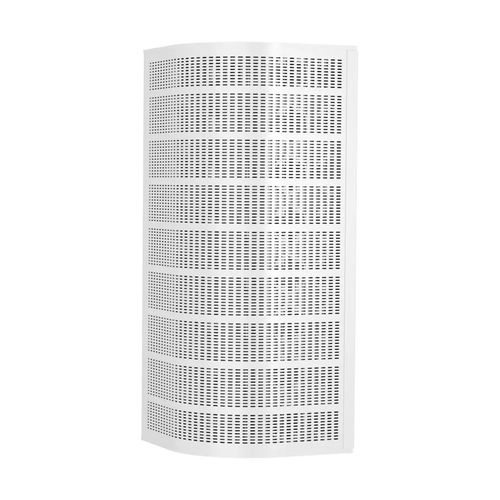

VARIZON® Displacement unit with adjustable spread pattern
DVC is a complete, quarter-circular displacement unit for wall mounting that provides supply air at low velocity to the occupied zone. The spread pattern is easily adjustable due to the rotatable air deflectors. Accessories for the unit include a floor base duct cover and regulating unit.
Adjustable spread pattern and affected zone
Suitable for all types of rooms
Air volume measuring point
Cleanable
Concealed fixing
Standard colour White RAL 9003
5 alternative standard colours
Other colours upon request
Technical Description
Design
The DVC is a complete, quadrant shaped displacement
unit for corner installation. The body consists of a rear
section with top and bottom plates and an air distribution
plate equipped with a number of adjustable air deflectors.
The top plate has a circular inlet socket. The distribution
plate has an access hatch for access to the duct system.
The perforated front plate is fastened to the unit with
concealed screws, behind the removeable aluminum side
strips. The airflow measuring point is placed behind one
of the side strips.
Materials and surface treatment
The displacement unit is manufactured in galvanized
sheet steel and aluminum profiles. It is powder coated
with paint.
• Standard colour:
- White semi-gloss, lustre 40, RAL 9003/NCS S 0500-N
• Alternative standard colours:
- Silver gloss, lustre 80, RAL 9006
- Grey aluminium gloss, lustre 80, RAL 9007
- White semi-gloss, lustre 40, RAL 9010
- Black semi-gloss, lustre 35, RAL 9005
- Grey semi-gloss, lustre 30, RAL 7037
• Non-painted finish and other colours available on
request.
