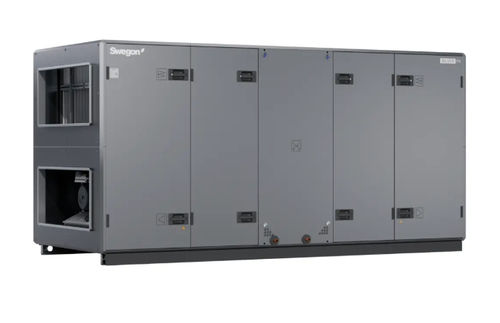

Commercial air handling unit SILVER C PX

home

Air handling unit with plate heat exchanger SILVER C PX is a complete air handling unit with the counter flow heat exchanger RECOflow, direct-driven supply air and extract air fans as well as supply air and extract air filters. The counter flow heat exchanger, with its separate air flows, is especially recommended for applications where odours risk being transferred between the extract and supply air, for example, in kitchen and restaurant applications. Air flows up to 11.520 m³/s Bypass and shut-off dampers Optimised fan sizes give greater freedom to choose exactly the right size of air handling unit and fan variants to suit the needs of the installation. This also gives even greater possibilities to optimise the energy efficiency of the current project General The SILVER C RX/PX/CX air handling units are complete with direct-driven supply air and extract air fans, supply air and extract air filters and heat exchanger. The heat exchanger is either a rotary heat exchanger (RX), counterflow heat exchanger (PX) or coil heat exchanger (CX). The SILVER C SD single-direction units are supply air/ extract air handling units with one direct-driven supply air or extract air fan. A filter is available as an option for all sizes. The coil heat exchanger and unmounted pipework package can be selected for the size 004-120 units. If supplementary function sections such as dampers and air coolers are required, they must be installed in the ductwork (duct accessories). Unit sections such as e.g. the multisection and air bypass section can be installed in the air handling unit arrangement of the size 004-120 RX/PX/ CX units.
