Duct diffusers with discs for supply air
100% flexible spread pattern
Suspended installation
Easy installation
Modular length: 1500 mm
Standard colour White RAL 9003
5 alternative standard colours
Other colours upon request
Technical description
Design

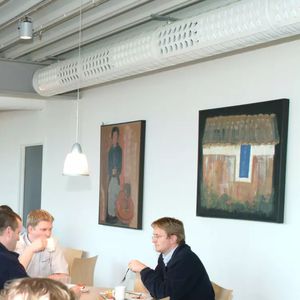

IBIS duct air diffuser with nozzles has a diameter that is compatible with standard duct sizes. IBIS is equipped with aerodynamically designed nozzles that have a high induction capacity.
The 160 mm dia. and 200 mm dia. IBIS duct air diffusers are
equipped with Swegon’s small nozzles. The standard duct diffuser is available in a number of sizes as shown in Figure 8 (page
13) as well as in the Dimensions and weights table. There is an
integrated strip on top that runs longitudinally for suspending
the duct diffuser from the ceiling.
Materials and finish
The duct air diffuser with nozzles is made of galvanized sheet
steel and is painted.
• Standard colour:
- White semi-gloss, lustre 40, RAL 9003/NCS S 0500-N
• Alternative standard colours:
- Silver gloss, lustre 80, RAL 9006
- Grey aluminium gloss, lustre 80, RAL 9007
- White semi-gloss, lustre 40, RAL 9010
- Black semi-gloss, lustre 35, RAL 9005
- Grey semi-gloss, lustre 30, RAL 7037
• Non-painted finish and other colours available on request.
The nozzles are made of recyclable environmentally friendly
plastic (polypropylene-PP).
Customizing
In addition to the size specified, the duct diffusers are available
in alternative sizes, number of nozzles, etc. For more info, get in
touch with your nearest Swegon representative.
