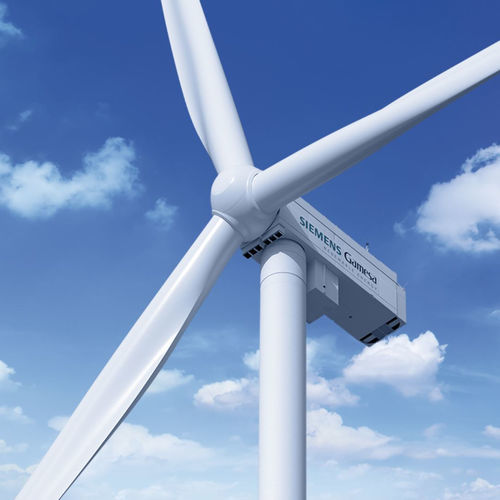

Horizontal-axis wind turbine SG 7.0-170
three-bladedonshorefree-standing tower

Horizontal-axis wind turbine - SG 7.0-170 - SIEMENS GAMESA - three-bladed / onshore / free-standing tower
Horizontal-axis wind turbine - SG 7.0-170 - SIEMENS GAMESA - three-bladed / onshore / free-standing tower
Horizontal-axis wind turbine - SG 7.0-170 - SIEMENS GAMESA - three-bladed / onshore / free-standing tower - image - 2
Horizontal-axis wind turbine - SG 7.0-170 - SIEMENS GAMESA - three-bladed / onshore / free-standing tower - image - 3
Horizontal-axis wind turbine - SG 7.0-170 - SIEMENS GAMESA - three-bladed / onshore / free-standing tower - image - 4
Horizontal-axis wind turbine - SG 7.0-170 - SIEMENS GAMESA - three-bladed / onshore / free-standing tower - image - 5
Horizontal-axis wind turbine - SG 7.0-170 - SIEMENS GAMESA - three-bladed / onshore / free-standing tower - image - 6
Add to favorites
Compare this product


Characteristics

Orientation
horizontal-axis
Number of blades
three-bladed
Type
onshore
Other characteristics
free-standing tower
Rated power

7,000 kW
(9,517 hp)

Description

Enhanced performance at medium & high wind SG 7.0-170 Class IIA, the latest addition to the Siemens Gamesa 5.X platform. A turbine for medium and high winds. Key Facts Flexible power output and two rotor sizes for a competitive LCoE. Site adaptability to configure the suitable solution for each project. Versatility, a highly flexible design for logistics, construction and service. Siemens Gamesa 5.X goes one step further to become a platform that combines a flexible power rating from 5.6 MW to 7.0 MW with two rotors of 155 and 170 meters, to obtain high performance in all wind conditions. The Siemens Gamesa 5.X onshore platform has its roots in Siemens Gamesa geared technology, in which we have extensive knowledge and expertise. This includes a doubly-fed generator and partial converter combination and a compact drive train design with a three-stage gearbox. The result is a wind turbine designed to optimize performance and LCoE. Our onshore approach is focused on geared technology, in which we have extensive knowledge and expertise. The hallmarks of Siemens Gamesa turbines are: reliability, robustness and a modular, flexible design for optimum adaptation and maximization of production at any site and in all wind conditions. Thanks to OptimaFlex technology, we go beyond the traditional off-the-shelf approach that results in products that are sub-optimal for many sites, and we deliver a uniquely tailored solution that is perfect for our customers’ specific needs. Optimized site design combined with a customizable product platform, based on flexible power rating.
