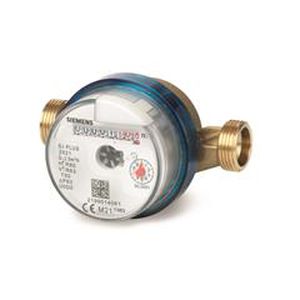

The mechanical single-jet impeller type meters are of compact design and used for measuring the consumption of hot water. They are available as wall-mounted dry runner versions in different sizes, with a flow measuring section body made of brass. The cumulated consumption value acquired by the water meter can be read out on site. All water meters WFW240.. can be retrofitted with a pulse module equipped with Reed contact (WFZ44) or Reed contact with Namur circuit (WFZ43). They conform to MID.
The meters are supplied with Installation Instructions in the following languages: Bulgarian, Croatian, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Lithuanian, Norwegian, Polish, Slovakian, Slovenian, Spanish, Turkish.
Mechanical single-jet hot water meter with module slot, Q3 = 4.0 m³/h, L = 130 mm, G 1 "
PN class
PN 16
Flow rate Q3
4 m³/h
Mounting length
130 mm
Connecting thread
G 1"
Max. water temperature
90 °C
Display
m3; 0…99999.999
