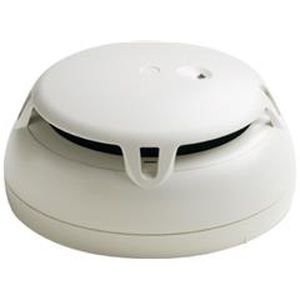

For the early detection of smoke-generating, flaming and smoldering fires.
Works according to the scattered-light principle with one sensor, optical forward scattering. Opto-electronic sampling chamber blocks disturbing extraneous light but optimally detects smoke particles. Signal processing with detection algorithms (DA).
The base must be ordered separately.
Also available in different colors.
Standard
EN 54-7 , EN 54-17
Protection category
IP43; IP44 with base attachment
Operating voltage
DC 12…33 V
Operating temperature
-10…60 °C
Storage temperature
-30...+75 °C
Quiescent current
180...230 μA
Ext. alarm indicator
2 without sounder base 1 with sounder base
System compatibility
FDnet -> FS20, AlgoRex, SIGMASYS
Communication protocol
FDnet
Relative humidity
≤95 %
Dimensions (Ø x H)
100 x 46 mm
Color
Pure white, ~RAL 9010
