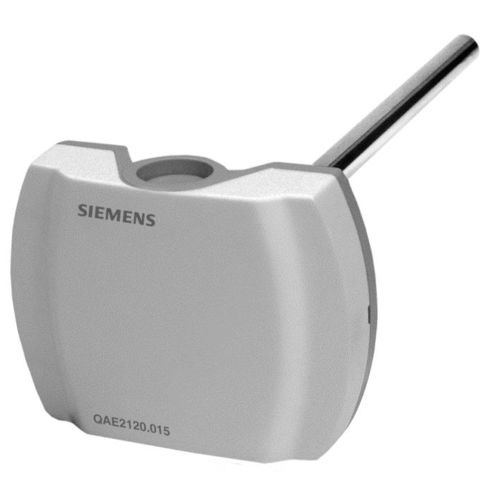

Immersion temperature sensor Pt1000 class A, 100mm, for acquiring the water temperature in pipes and tanks
Fixing is made by protection pocket or compression fitting. If for the nominal pressure no entry can be found in the table, no protection pocket is included as standard and the nominal pressure depends on the protection pocket used (see accessories). By using the compression fitting AQE2102 the nominal pressure is 16 bar (PN16).
Sensing element
Pt100
Sensing element, temperature
Pt100
Measuring range, temperature
-30…130 °C
Time constant
With protection pocket: 30 s, Without protection pocket: 8 s
Immersion length
100 mm
Protection pocket
Not included
Material, immersion pocket
Stainless steel
Connection, electrical
Screw terminals
PN class
PN 10
Dimensions (W x H x D)
80 x 60 x 31 mm
