For shaft dia. 8...16 mm, min. shaft length 30 mm, square 6...12,8 mm, min. shaft length 20 mm
Button for disengaging the gear train to enable manual override
For air conditioning units and air distribution systems for railway vehicles
Connection cables railway specific 0.9 m
Printed circuit board, coated
Torque
8 Nm
Air damper area
1.5 m²
Angular rotation
90°
Power consumption
1.8 W
Positioning time
30 s
Cable length
0.9 m
Positioning signal
DC0/2…10 V
Degree of protection
IP54
Ambient temperature, operation
-40...+70 °C
Dimensions (W x H x D)
71 x 137 x 60.6 mm
Operating voltage
DC 24 V
Position feedback
DC0/2…10 V
Auxiliary switch
0

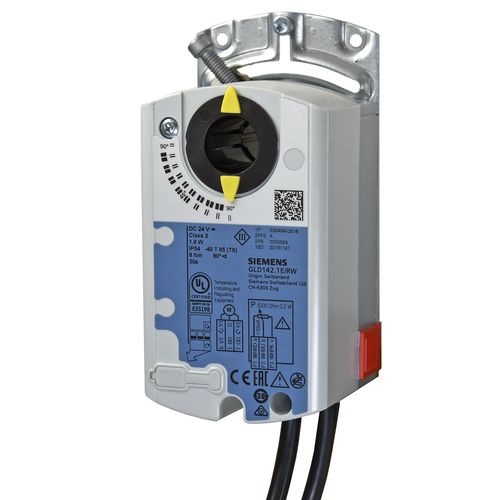

Electronic motor driven actuators for open-close and
three-position control
● Nominal torque 8 Nm / 10 Nm
● Runtime 30 s / 90 s
● Rotary angle 0…90°
● Connection cables railway specific
● Feedback potentiometer
● Adjustable auxiliary switches
● Degree of protection IP54
● Printed circuit board, coated
Air damper actuators in difficult operational conditions; they meet the main requirements for:
● EN 50155 (Railway applications ‒ Electronic equipment used on rolling stock)
● EN 45545 (Railway applications ‒ Fire protection on railway vehicles)
● EN 61373 (Railway applications ‒ Rolling stock equipment - Shock and vibration tests).
The damper actuators are expressly suitable for air conditioning units and air distribution
systems for railway vehicles.
● For damper areas up to 1.6 m2
● Suitable for use with open-close- or three-position controllers.
