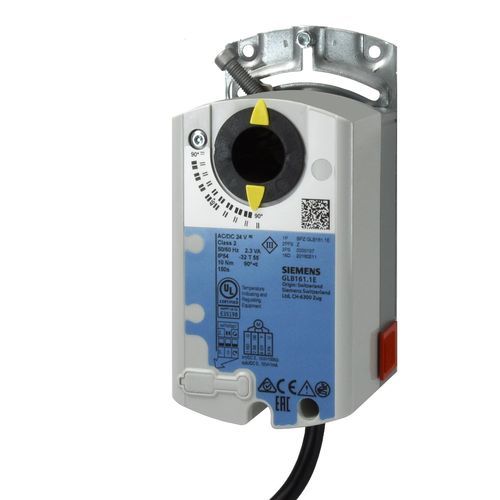

Rotary air damper actuator, AC/DC 24 V, DC 0/2...10 V, 10 Nm, 150 s
For shaft dia. 8..16 mm, square 6...12 mm, min. shaft length 30 mm
With position indication and adjustable mechanical limit stop
Button for disengaging the gear train to enable manual override
With base made of steel, plastic housing and 5 m connecting cable
Torque
10 Nm
Air damper area
1.5 m²
Angular rotation
90°
Power consumption
2.5 VA, 1.5 W
Positioning time
150 s
Cable length
5 m
Positioning signal
DC 0/2...10 V
Degree of protection
IP54
Ambient temperature, operation
-32...55 °C
Dimensions (W x H x D)
68 x 137 x 59.5 mm
Operating voltage
AC 24 V, DC 24 V
Auxiliary switch
0
• Electronic motor driven actuators for three-position and modulating control
• Nominal torque 5 Nm (GDB), 10 Nm (GLB)
• Mechanically adjustable span between 0...90°
• Pre-wired with 0.9 m long connection cables
• Type-specific variations with adjustable offset and span for the positioning
signal
• Position indicator
• Feedback potentiometer
• Self-adaption of rotational angle range and adjustable auxiliary switches for
supplementary functions
• For damper areas up to 0.8 m2 (GDB) / 1.5 m2
(GLB), friction-dependent.
• Suitable for use with modulating controllers (DC 0...10 V) or three-position controllers
for air dampers or air throttles.
