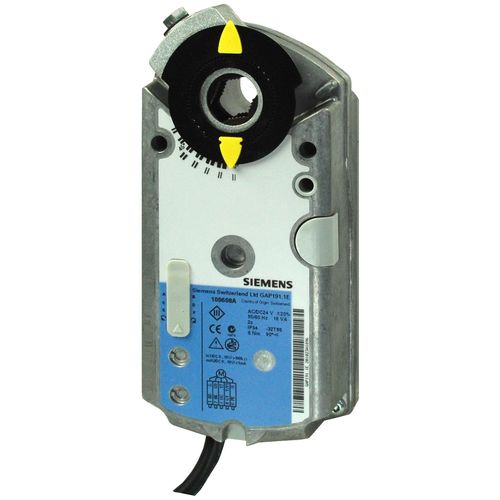

With self-centering shaft adapter for shaft dia. 6.4...20.5 mm, square 6.4...13 mm, min. shaft length 20 mm
With position indication and adjustable mechanical limit stop
Button for disengaging the gear train to enable manual control
With housing made of die-cast aluminium and 0.9 m connecting cable
Torque
6 Nm
Holding torque
6 Nm
Air damper area
1 m²
Angular rotation
90°
Power consumption
20 VA, 13 W
Positioning time
2 s
Cable length
0,9 m
Positioning signal
DC 0(2)...10 V, 0(4)...20 mA
Degree of protection
IP54
Ambient temperature, operation
-32…55 °C
Medium temperature
-32…50 °C
Ambient humidity, operation
95 % r.h.
Dimensions (W x H x D)
81 x 192 x 63 mm
Operating voltage
AC/DC 24 V
Auxiliary switch
0
