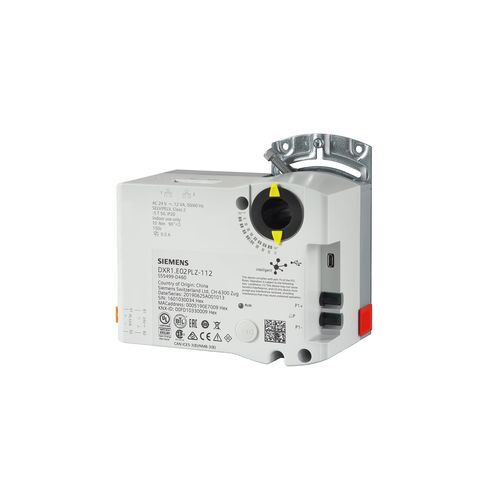

Compact, configurable room automation station in combination with actuator for HVAC
BACnet IP communications (BTL certified)
2-port Ethernet switch
USB interface
KNX PL-Link bus to connect sensors, actuators, and operator units (including bus power)
Operating voltage AC 24 V
Built-in 10 Nm actuator
Internal 0…500 Pa differential pressure sensor
Plug-in terminal blocks
Operating voltage
AC 19.2…28.8 V, 24 V
Frequency
50/60 Hz
Power consumption
12 VA
Communication
BACnet IP
Max. cable length
30 m
Digital outputs, number
4
Analog outputs, number
1
Mounting
Directly on the damper shaft
Degree of protection
IP20
Dimensions (W x H x D)
143.1 x 83.6 x 137 mm
