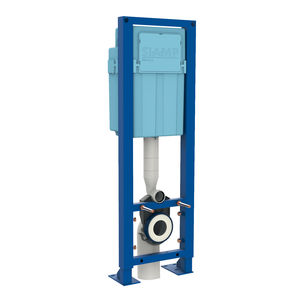

Built-in toilet tank BCU 790

For installing a wall hung-standard, extended or compact WC Self-supporting wall frame for dry cladding bearing a 400kg load Low height wall frame solution for installation below windows, stairs etc. Steel tube structure, 45x45x1.5mm, electro-welded and anti-corrosion treated (epoxy paint withstanding 200 hours of salt spray), NF approved WC fixing using threaded rods (no need to cut them) and with possible adjustment after cladding completion Feet are made from epoxy painted steel plate (140x80x8mm) and electro-welded epoxy painted steel tubes (40x40x4mm), fixed to the floor Can be fixed to the wall using 2 fixing brackets 6 litre cistern insulated against condensation, from which components can be accessed through the flush plate window. Conforms to WRAS, EN 14055 Class 2 flushing standards, BREEAM requirements and UK Building Regulations Dual flush outlet valve, 6/4 litres factory preset, adjustable to 4/2,6 litres on site, WRAS approved Water saving and quiet fill delayed action inlet valve Choice of mechanical dual flush or anti-vandal single flush front flush plates Connections: Water inlet connection on the inside of the cistern with 1/2″ brass isolating valve Supplied with 90° outlet bend, wich can be easely fixed on the frame by simply clipping it Supplied with accessories for protection during the construction phase
