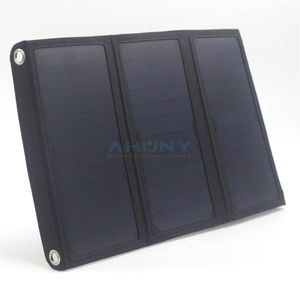

Monocrystalline PV solar panel eMobi F3*20w

Monocrystalline PV solar panel - eMobi F3*20w - SHENZHEN AHONY POWER CO.,LTD
Monocrystalline PV solar panel - eMobi F3*20w - SHENZHEN AHONY POWER CO.,LTD
Monocrystalline PV solar panel - eMobi F3*20w - SHENZHEN AHONY POWER CO.,LTD - image - 2
Monocrystalline PV solar panel - eMobi F3*20w - SHENZHEN AHONY POWER CO.,LTD - image - 3
Monocrystalline PV solar panel - eMobi F3*20w - SHENZHEN AHONY POWER CO.,LTD - image - 4
Monocrystalline PV solar panel - eMobi F3*20w - SHENZHEN AHONY POWER CO.,LTD - image - 5
Monocrystalline PV solar panel - eMobi F3*20w - SHENZHEN AHONY POWER CO.,LTD - image - 6
Add to favorites
Compare this product

Characteristics

Technology
monocrystalline
Peak power (Wp)

60 W

Description

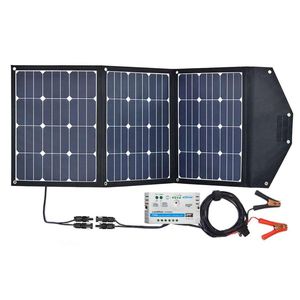

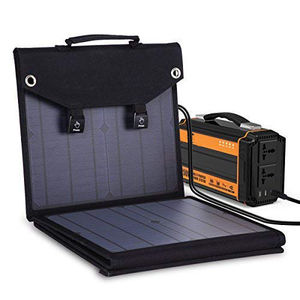

Model No. eMobi F3x20w or eMobi F60w M or eMobi F3*20w Product Name high efficiency 60w mono foldable portable solar charging kit bag dual USB PWM controller CE for power station lithium battery Maximum Power[Wp] 60 Solar Cell Mono PERC A Grade Solar Cell Cell Efficiency 21.30% Folded Size[mm] 400*360*60 Open Size[mm] 1260*400*4 Max Power Voltage Vmp[V] 20.26 Max Power Current Imp[A] 2.97 Open Circuit Voltage Voc[V] 24.05 Short Circuit Current Isc[A] 3.2 Net.Weight[kg] 3.2 NOCT[ 45±2 Operating Temperature[ -40/+85 Temperature Coefficient Pmax[%/ -0.4 Temperature Coefficient Voc[[mV/ -2mV Temperature Coefficient Isc[mA/ 0.037 Maximum System Voltage[V] 100 V Certification CE ROHS ISO9001 Suface/backsheet PET+FR4 fibreglass Charge controller PWM 10A 12/24V,2 USB,LCD display Cables 5m 14AWG cable Supporting Leg Yes Hook up way ropes
