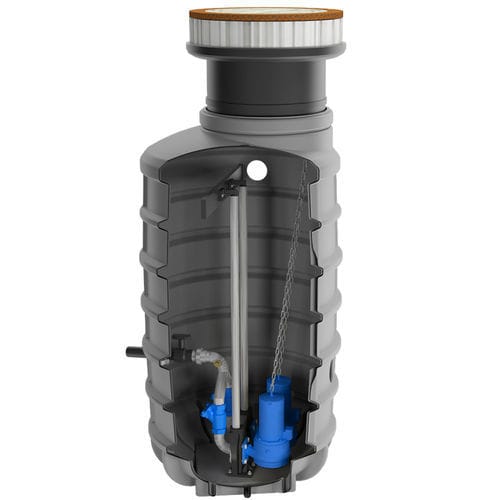

Pump station Sanifos 1600 2100 3100

More than 90 combinations One or two grinder pumps Cast iron pumps Frost-free installation The SANIFOS® range is available in 1,600 litres, 2,100 litres or 3,100 litres for all the most complex installations and for the most important requirements. More than 90 different versions are available with a combination of all parameters: one or two single-phase or three-phase cast-iron macerating pumps. For frost-free installation the depth is perfect, for installation in all situations 3 covers are available in class A, B and D. With a resistance of 40T this last one makes possible the installation in the middle of a road. Order type - Control Box ZPS 1 - Control Box ZPS 2 - Control Box ZPS 1 - Control Box ZPS 2 - Control Box ZPS 1 - Control Box ZPS 2 Number of pumps - 1 - 2 - 1 - 2 - 1 - 2 Materials Tank - PE - PE - PE - PE - PE - PE Guide bars - Stainless steel - Stainless steel - Stainless steel - Stainless steel - Stainless steel - Stainless steel Piping - Stainless steel - Stainless steel - Stainless steel - Stainless steel - Stainless steel - Stainless steel Hydraulics DN inlets diameter - 150 - 150 - 150 - 150 - 150 - 150 DN discharge diameter - 50 - 50 - 50 - 50 - 50 - 50 DN ventilation diameter - 100 - 100 - 100 - 100 - 100 - 100 ON/OFF level - Adjustable with the control box - Adjustable with the control box - Adjustable with the control box - Adjustable with the control box - Adjustable with the control box - Adjustable with the control box FEA min. - 1000 mm - 1000 mm - 1500 mm - 1500 mm - 2500 mm - 2500 mm Max. FEA with extension if available - 1440 mm - 1440 mm - 1940 mm - 1940 mm - 2940 mm - 2940 mm
