Water pump Sanisub ZPK

for pumping stationswith electric motorstainless steel

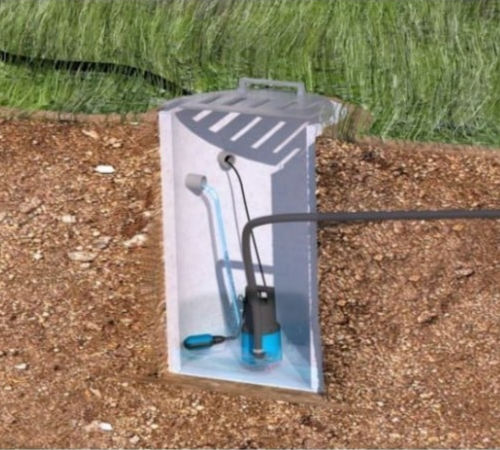

SANISUB ZPK, 2 models for all your needs Lifting height of 7.5M or 10M 2 models Automatic float release SANISUB ZPK is available in 2 models of cellar emptying pumps for pumping clear water from cellars, garages and rainwater manholes. Available in two power ratings of 300 and 850 W, they can be raised to 7.5 or 10 M high with automatic release thanks to the standard float. Pump body - PP GF - PP GF - PP GF Shaft - Stainless steel - Stainless steel - Stainless steel Waterproofing - Carbon/Ceramic - Carbon/Ceramic - Carbon/Ceramic/N BR Motor body - Stainless steel - Stainless steel - Stainless steel Wheel - PA 6 GF - PA 6 GF - PA 6 GF Electrical characteristics Voltage - 230 V - 230 V - 230 V Frequency - 50-60 Hz - 50-60 Hz - 50-60 Hz Power consumption P1 - 300 W - 850 W - 850 W Power output P2 - 130 W - 430 W - 430 W RPM - 2800 rpm - 2800 rpm - 2800 rpm Electrical class - I - I - I Immersion depth - 5 m - 5 m - 5 m Power cable: Length - 10 m - 10 m - 10 m Hydraulics HMT max. - 7.5 m - 10 m - 10 m Max. flow rate - 7 m³/h - 10 m³/h - 10 m³/h Discharge diameter G - 1"1/4 inch - 1"1/4 inch - 1"1/4 inch Particle size - 10 mm - 30 mm - 30 mm Max. permissible temperature of the pumped liquid - 90 °C (5 mins) - 90 °C (5 mins) - 90 °C (5 mins) Wheel type - Multi-channel wheel - Multi-channel wheel - Multi-channel wheel Switching type - Float - Float - Float
