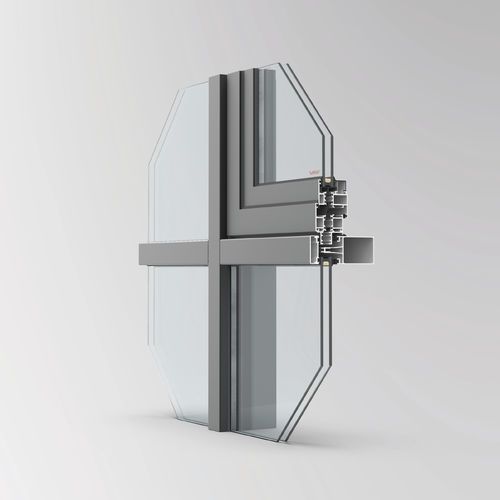

Aluminum facade system EF 50

glassinsulatedmodular

The EF 50 Facade System has a structure that provides maximum transparency, use of natural light and uninterrupted views by creating large glass areas. The system, consisting of vertical and horizontal carrier profiles, adapts to various architectural requirements since it has different dimensions and moments of inertia. While it allows unique facade designs with its covered, semi-covered and structural silicone alternatives, it offers fast and easy application by its modular structure. EF 50, an innovative facade system, offers a multifunctional solution by being used integrated with other Saray products. This results in a complete facade solution that holistically meets architectural requirements. Offering a superior insulation performance, the EF 50 Facade System contributes to energy costs throughout the life cycle of the building with the components it contains. With this feature, it is especially preferred by projects that attach importance to energy efficiency and sustainability principles. Designed to suit different geographical and climatic conditions, the system provides resistance to external weather conditions in high-rise buildings and offers comfortable living spaces to users indoors. Technical Properties System Visible Width - 50 mm Mullion Depth - 80 – 200 mm Mullion Inertia (Jx) - 60 – 1045 cm4 Mullion Inertia (Jy) - 21 – 60 cm4 Transom Depth - 50 – 177 mm Transom Inertia (Jx) - 28 – 388 cm4 Transom Inertia (Jy) - 14 – 40,88 cm4 Glazing Thickness - 6 – 32 mm Max. Sash Dimensions - 1500 x 2500 mm Max. Sash Weight - 180 Kg Performance Values TS EN 12152 - Air Permability - Class 4 TS EN 12154 - Water Tightness - RE 1200 TS EN 13830 - Wind Load Resistance - 1500 Pa
