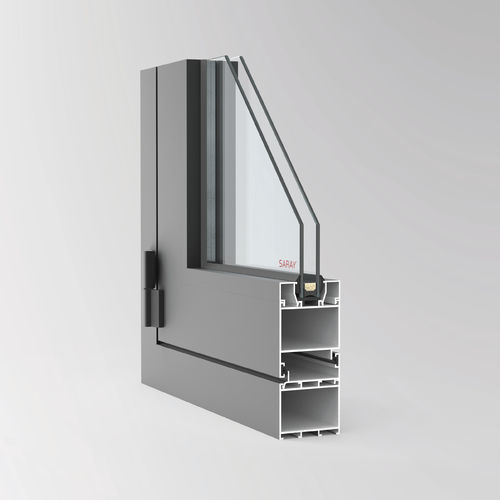

Aluminum door profile C 60

thermally-insulated

C 60 System is a preferred option for fixed showcase and door applications, mainly in commercial areas such as stores and shops. With its barrier-free structure, it offers an ideal alternative especially for temperate regions. This functional door, window and showcase system with a frame depth of 60 mm allows the use of inward-opening windows, single-sash or double-sash doors that open inward and outward, as well as swing doors. It is also a preferred system as a separator for indoor spaces. The double-sided application of the glazing bead provides convenience when glass replacement is required. The C 60 System consists of two different profiles with wall thicknesses varying between 1.5 mm and 2.0 mm, and allows 13-38.5 mm thick glasses to be used in the system. With these features, it offers a wide range of flexibility and convenience to users. Technical Properties System Visible Width (Fixed) - 36 mm System Visible Width (Vent) - 72,6 mm System Thickness (Fixed) - 60 mm System Thickness (Vent) - 60 mm Reinforced Mullion Depth - 130 mm Moment of Inertia of Reinforced Mullion (Jx) - 148,02 cm4 Moment of Inertia of Reinforced Mullion (Jy) - 32,25 cm4 Glazing Thickness - 4 – 32 mm Max. Sash Dimensions - 1500 x 2500 mm Max. Sash Weight - 160 Kg
