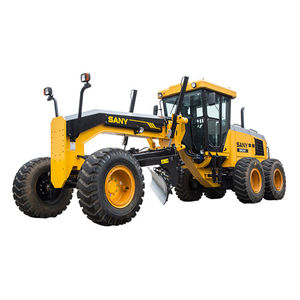

Engine Model CUMMINS QSC
Rated Power 153kW
Peak Torque 1010NM
Overall Dimensions (L×W×H) 8960×2720×3310mm
Operating Weight 16920kg
Forward Speed 3.8/5.1/7.5/10.3/16.1/21.9/30.1/43.8km/h
Reverse Speed 3.0/5.6/8.1/12.7/23.8/34.6km/h
Min. Turning Radius 7.4m
Length of Blade 3660(standard)mm
Height of Blade 620mm
Max. Lift Above Ground 480mm
Max. Depth of Cut 715mm
◆The precision, reliable, low maintenance circle
bearing reduces maintenance costs
◆ The load sensing hydraulic system provides adequate flow during multiple implement operation. The rapid,
precise response to control input results in exceptional grading quality.
◆ The automatic regulation of pump flow based on load conditions results in increased fuel economy.
◆ In the optional "intelligent fan" cooling system, the fan speed is continuously variable the cooling system
operating temperature.
◆ Conveniently located handrails and
steps provide easy access to filters,
fluids and service items
◆ The centralized lay out of filters are
easy for maintenance.
◆ Direct drive power shift transmission
delivers smooth, responsive shifting.
◆ Provides the operator with a 360 degree field of vision.
◆ "Silent ride" engineered cab.
