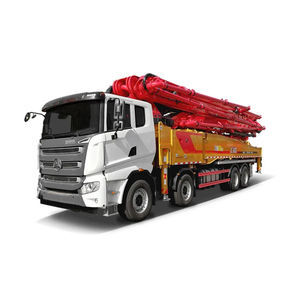

Truck-mounted concrete pump SYG5340THB 490C-10

Truck-mounted concrete pump - SYG5340THB 490C-10 - SANY GROUP
Truck-mounted concrete pump - SYG5340THB 490C-10 - SANY GROUP
Truck-mounted concrete pump - SYG5340THB 490C-10 - SANY GROUP - image - 2
Truck-mounted concrete pump - SYG5340THB 490C-10 - SANY GROUP - image - 3
Truck-mounted concrete pump - SYG5340THB 490C-10 - SANY GROUP - image - 4
Truck-mounted concrete pump - SYG5340THB 490C-10 - SANY GROUP - image - 5
Truck-mounted concrete pump - SYG5340THB 490C-10 - SANY GROUP - image - 6
Add to favorites
Compare this product

Characteristics

Configuration
truck-mounted
Output

137 m³/h, 200 m³/h
(4,838 ft³/h, 7,063 ft³/h)

Description

One-button fixed boom position function quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose. The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose. When system pressure reaches 12Mpa:No. of stroke reaches 29t/Min. Pump efficiency increases 25%(Max). Diesel consumption decreases 10%. To use top rotation brake technology to control the amplitude of Boom on swing, the boom's overswing amplitude is reduced by 60%. Delivery pipe Discharge port/transition bushing Concrete piston Wear plate/cutting ring Delivery cylinder Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%. One button boom extend/retract Operator programmable height limit Coordinated section operation Overload protection for boom cylinders Agitator safety switch off Boom interference preventing technology
