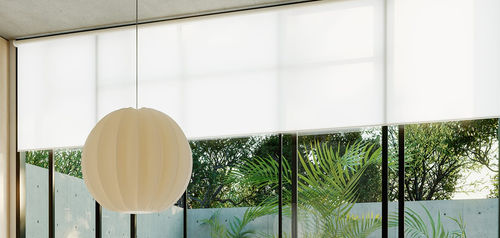

Roller blinds ZOOMTECH® | SG Series

for windowfabricextruded aluminum

Application: Vertical Installation: Indoor The SG series, with patented Zoomtech® technology, features models of blinds with various shapes and finishes of casings. The casing protects both the mechanism and the fabric, enhancing the aesthetic effect and thus becoming a decorative element. Roller tube with patented Zoomtech® technology: Ø 44 mm extruded aluminum tube with slot Application: vertical Installation: indoor Headbox: C104 squared extruded aluminum headbox with removable cover and powder coated aluminum end cheeks. On supplement end cheeks for side mounting Hem bar: FZ37 extruded aluminum weighted flat hem bar with PVC end caps Operation: motorised operation; 230V/50Hz tubolar motor M50, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance Mounting: ceiling mounting. Supplement for wall mounting with steel powder coated “L” brackets in the same colour as the headbox
