Application: Vertical
Installation: Internal

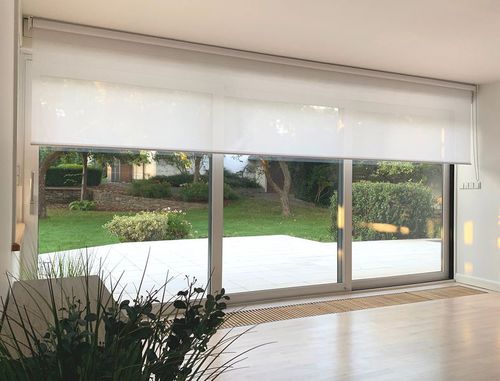

Wall or ceiling mounting with roller featuring patented Zoomtech® technology.
Roller tube with patented Zoomtech® technology: Ø 44 mm extruded aluminum tube with slot
Brackets: 47×75 mm steel powder coated brackets (white Ral 9010, grey Ral 9006, matt black 9005)
Hem bar: FZ37 extruded aluminum weighted flat hem bar with PVC end caps
Operation: motorised operation; 230V/50Hz M40 tubolar motor, with top/bottom limit switches and mains cable, thermal cut-out and class IP44 water resistance
Mounting: wall or ceiling
technology: Ø 60 mm extruded aluminum tube
Brackets: 80×92 mm steel powder coated brackets with PVC covers (white Ral 9010, grey Ral 9006, matt black 9005)
technology: Ø 78 mm galvanized steel tube with slot
Brackets: 110×120 mm steel powder coated brackets with PVC covers (white Ral 9010, grey Ral 9006, matt black 9005). Supplement for 110x120mm AISI 304 stainless steel brackets
