Sheet cladding LINIUS® L.150ACS

aluminumgypsum plastervertical

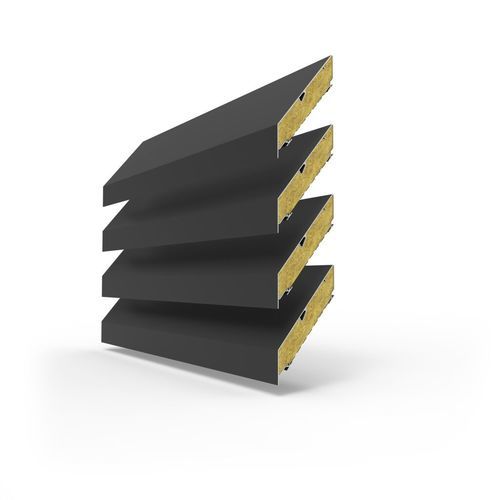

Extruded aluminium profile with a pitch of 150 / 170 mm and perforated underside; maximum blade length of 6,000 mm. Blades packed with inorganic mineral wool for acoustic performance. Developed to provide an aesthetic solution for noise reducing continuous louvre applications. Materials extruded aluminium, EN AW - 6063 T66, perforated aluminium sheet. Finish - Anodised (20 micron) - Polyester powder coating RAL or Syntha Pulvin® colours (60 - 80 μ/40 μ (UK)) Mesh Fixed to rear of the support structure. Doors Single and double doors available with standard RENSON® hardware and rotating on pivot Acoustic properties L.150AC S: Rw (C;Ctr)= 11 (-1;-2) dB L.170AC S: Rw (C;Ctr)= 9 (0;-1) dB L.150ACL : Rw (C;Ctr)= 15 (-1;-4) dB L.170ACL : Rw (C;Ctr)= 13 (-1;-3) dB Blade support L.150AC S: type L.150AC S.11 L.170AC S: type L.170AC S.11 L.150ACL : type L.150ACL .11 L.170ACL : type L.170ACL .11
