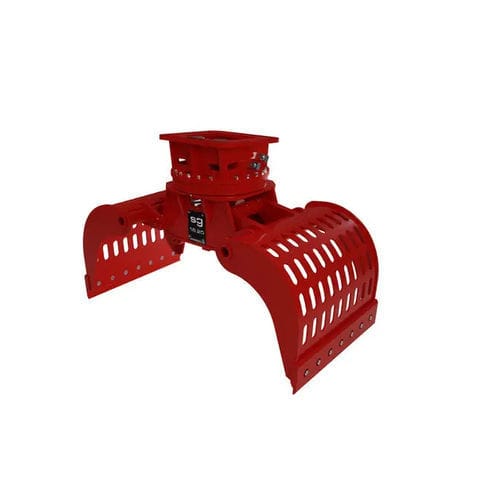

Sorting grab SG 16.20

hydraulicrotaryfor excavators

Promove’s sorting grabs are the perfect solution for handling different types of material and for small demolition jobs. SG line main features are: compact design, low weight and continuous 360° hydraulic rotation. Equipment Weight 1100 Kg Oil Flow Open 100-120 l/min Working pressure 300 bar Rotation oil flow 20-25 l/min Rotation pressure 190 bar Closing Force 43 kN Height - A 1250 mm Useful height - B 500 mm Max opening - C 1950 mm Width - D 1000 mm Capacity 650 l
