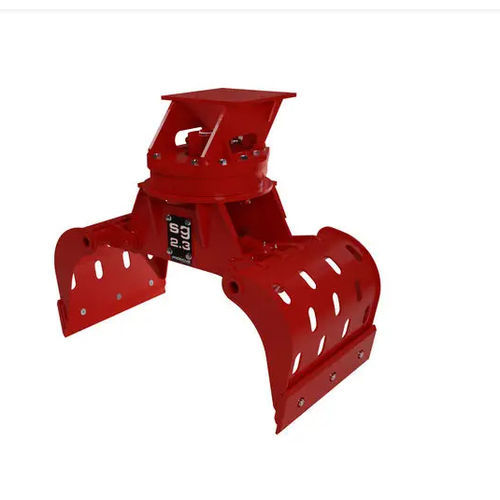

Sorting grab SG 2.3hydraulicrotaryfor excavators
Add to favorites
Compare this product
Characteristics
- Type
- sorting
- Operation
- hydraulic
- Other characteristics
- for excavators, rotary
- Carrier weight
Max.: 3 t
(3 us ton)Min.: 2 t
(2 us ton)
Description
Promove’s sorting grabs are the perfect solution for handling different types of material and for small demolition jobs. SG line main features are: compact design, low weight and continuous 360° hydraulic rotation.
Grab Weight 145 Kg
Pressure Open/Close 300 bar
Oil Flow Open/Close 20-30 l/min
Min/Max Pressure Rotation 80 bar
Oil Flow Rotation 5-10 l/min
Width -D 450 mm
Max Opening - C 900 mm
Height - A 690 mm
Useful Height - B 260 mm
Capacity 60 lt
Closing Force 15 kN
Catalogs
sg rev 1.5
2 Pages
