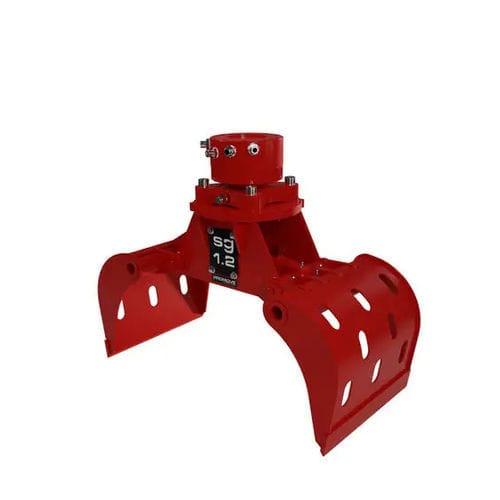

Sorting grab SG 1.2hydraulicrotaryfor excavators
Add to favorites
Compare this product
Characteristics
- Type
- sorting
- Operation
- hydraulic
- Other characteristics
- for excavators, rotary
- Carrier weight
Min.: 700 kg
(1,543 lb)Max.: 2,000 kg
(4,409 lb)
Description
Promove’s sorting grabs are the perfect solution for handling different types of material and for small demolition jobs. SG line main features are: compact design, low weight and continuous 360° hydraulic rotation.
Grab Weight 77 Kg
Pressure Open/Close 200 bar
Oil Flow Open/Close 15-30 l/min
Min/Max Pressure Rotation 100 bar
Oil Flow Rotation 5-10 l/min
Width -D 360 mm
Max Opening - C 750 mm
Height - A 557 mm
Useful Height - B 220 mm
Capacity 30 lt
Closing Force 8 kN
Catalogs
sg rev 1.5
2 Pages
